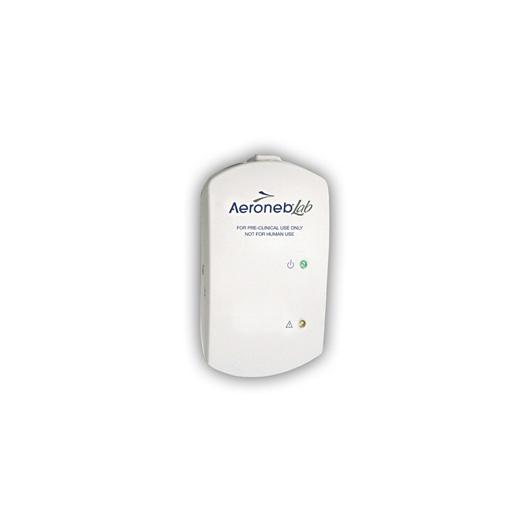

Aeroneb® Labor-Steuermodul
The Aeroneb® Lab Micropump Nebulizer uses a high-efficiency aerosolization technology for use in pre-clinical aerosol research and inhalation studies, providing a valuable link between pre-clinical and clinical product development.
Using Aerogen’s OnQ Aerosol Generator, the Aeroneb® Lab is designed to produce a highly respirable aerosol of virtually any drug in liquid. It produces a fine droplet, low-velocity aerosol without compressed air, and integrates easily into existing exposure and aerosol testing equipment.
Aeroneb® is a registered trademark of Nektar Therapeutics.
Features
- Produces a high-quality respirable aerosol with extremely low residual volume
- Aerosolizes a broad range of liquid formulations without altering or damaging the compound’s molecular integrity
- Utilizes the same OnQ™ technology used in two commercially available nebulizer products, providing a bridge from preclinical to clinical studies
- Includes a universal adapter, good from 100V to 240V
- Nebulizer and components are latex free
-
Note: The nebulizer delivery system requires the use of a flow regulated air source such as a pump or compressed gas source (not included) to move the aerosol through the tubing towards the animal.
Nebulizer Unit Options:
Aeroneb® Lab Nebulizer Unit, Small VMD
- Durchflussrate: >0,1 ml/min
- Partikelgröße: Volumendurchmesser (VMD) zwischen 2,5 µm - 4,0 µm
- Rest-Volumen: <0,2 ml
Aeroneb® Lab Nebulizer Unit, Standard VMD
- Durchflussrate: >0,3 ml/min
- Partikelgröße: Volumendurchmesser (VMD) zwischen 4,0 µm - 6,0 µm
- Rest-Volumen: <0,2 ml
- Abmessungen der Verneblereinheit: 50 mm B x 45 mm H x 50 mm T
- Abmessungen des Steuermoduls: 75 mm B x 33 mm H x 131 mm T
- Steuermodulkabel: 1,8 m lang
- Gewicht der Verneblereinheit: 25 g inklusive Verneblereinheit und Einfüllkappe
- Gewicht des Steuermoduls: 178 g inklusive Kabel
- Kapazität der Verneblereinheit: Maximal 10 ml
- Stromversorgung: Betrieb über AC/DC-Adapter (Eingang 100 bis 240 VAC, 50 bis 60 Hz, Ausgang 9 V) oder externes 9-V-Gleichstromnetzteil möglich
- Stromverbrauch: < 2,57 Watt
| Produktname | |
|---|---|
| NEB-7000 Module with Universal A/C Adapter |
